Integrate Kafka Messaging Queue with NodeJS

What is Apache Kafka?

Apache Kafka is mainly used for Messaging Queues. Apache Kafka is a distributed Publish-Subscribe Messaging System. Kafka was developed at LinkedIn and later became part of the Apache project. Kafka is also used for real-time data streams and to collect big data for real-time analytics.

Kafka decouples the data pipeline and solves the complexity problem. The application which are producing the messages to Kafka could be anything like front end server, Hadoop server, database server, Chat server. These are called Producers.

The application which is consuming those messages from Kafka like a database server your security system, monitoring system, other services, or data warehouse are called Consumers.

So your producer sends data to Kafka, Kafka stores those messages, and the consumer who wants those messages can subscribe and receive them. You can have multiple subscribers to a single category of messages.

Adding a new consumer is very easy. You can go ahead and add a new consumer and just subscribe to the message categories that is required.

The Kafka cluster is distributed and has multiple machines running in parallel. This is the reason why Kafka is fast, scalable, and fault tolerant.

Integrate Kafka Messaging Queue with NodeJS

Basic Terminology of Kafka

Topic:

Kafka Topic is a category or feed name to which records are published. Topics in Kafka are always multi subscribers, that is topic can have zero more or many consumers that can subscribe to the topic and consume the data. In the to Kafka you can have sales record getting published to sales topics, product records, getting permission to product topics and so on. This will actually segregate your messages and the consumer will only subscribe to the topic which they need.
Kafka topics are divided into a number of partitions. Partitions allow you to paralyze a topic by splitting the data in a particular topic across multiple brokers. Each partition can be placed on a separate machine to allow multiple consumers to read from a topic parallel.

Partition:

Topics are broken up into ordered commit logs called partitions.

Consumer:

The consumer can subscribe to one topic and consumes data from that topic. You can have multiple consumers in a consumer group. So a consumer labels themselves with a consumer group name.
Each record published to a topic is delivered to one consumer instance within that subscribing consumer group. But you can have multiple consumer groups which can subscribe to a topic where one record can be consumed by a multiple consumer, that is one consumer from each consumer group. Consumer instances can be separate processes or can be separate machines.

Brokers:

A Kafka cluster is a set of servers, each server is called a cluster or we can say Brokers are a single machine in a Kafka cluster.

Zookeeper:

Zookeeper is another Apache open-source project. It stores the metadata information related to Kafka cluster, like broker information, topic details, etc.

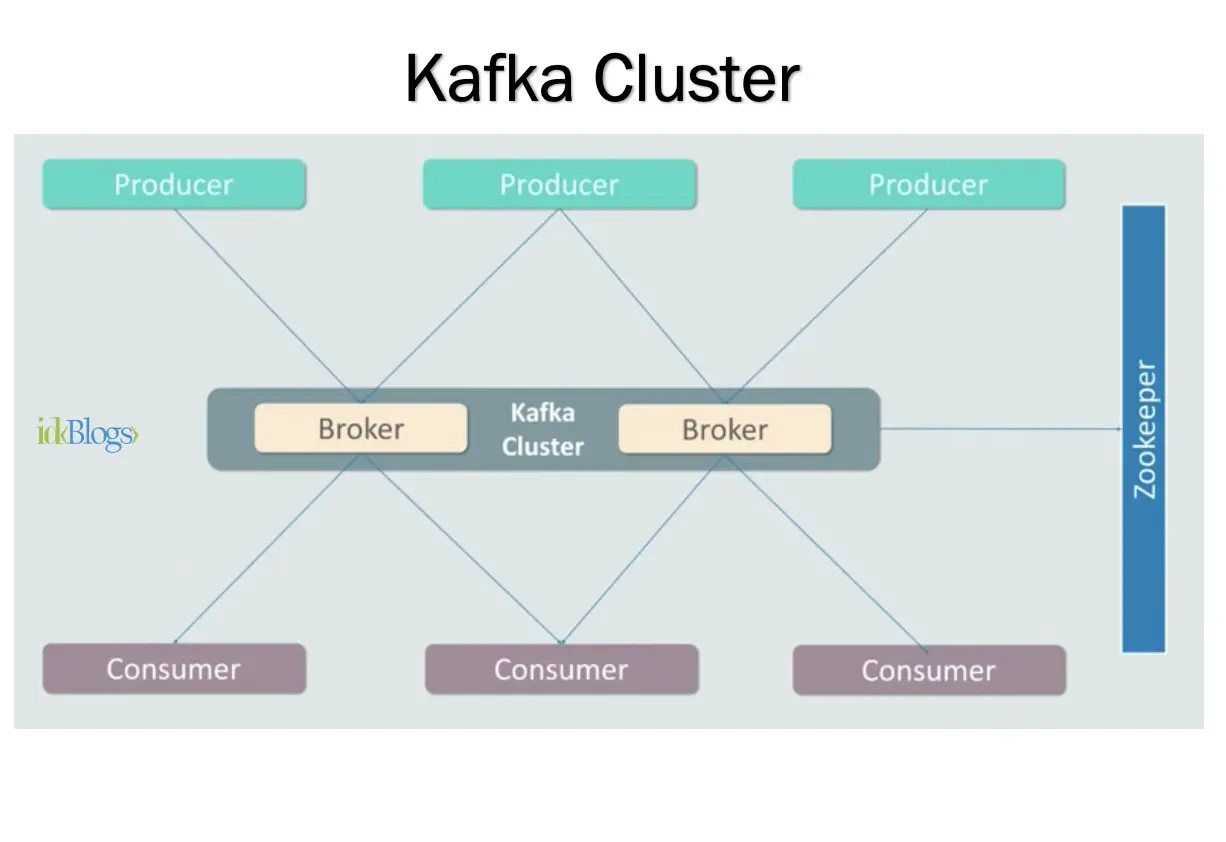

Let's understand the Kafka Cluster?

Integrate Kafka Messaging Queue with NodeJS

In the above image, we can see that we have multiple producers which are producing data to Kafka broker and the Kafka broker is inside a Kafka cluster. Here, we have multiple consumers, consuming the data from the Kafka broker, or we can say Kafka cluster. This Kafka cluster is managed by Zookeeper. Zookeeper is basically maintaining the metadata of your Kafka cluster.

What are the Kafka features?

👉 High Throughput

👉 scalability

👉 Prevent Data Loss

👉 Stream Processing

👉 Durability

👉 Replication

👉 Easy to integrate

Let's integrate the Kafka with NodeJS

Now we have basic theoretical knowledge of Kafka. Let's We'll integrate Kafka with NodeJS. For that we need to install the docker and nodejs on our machine, after the installation, we need to follow the below steps.

Step 1: Prepare a demo app directory

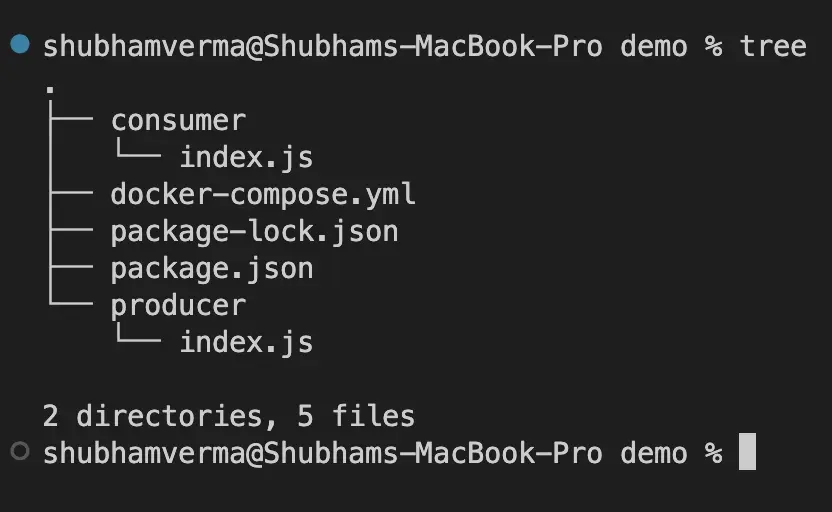

The root directory is "demo". To start the demo Kafka app, let's create the directory structure as below.

Integrate Kafka Messaging Queue with NodeJS

Step 2: Prepare a docker container

In this demo, we will use a docker container to run our Kafka, So we need to create a docker-compose.yml file to run the Kafka on your local machine. Your Kafka will be run into a docker container.
Add the below codes to your docker-compose.yml file.

docker-compose.yml

                                version: "3"
                                services:
                                zookeeper:
                                    image: 'bitnami/zookeeper:latest'
                                    ports:
                                    - '2181:2181'
                                    environment:
                                    - ALLOW_ANONYMOUS_LOGIN=yes
                                kafka:
                                    image: 'bitnami/kafka:latest'
                                    container_name: 'kafka'
                                    ports:
                                    - '9092:9092'
                                    environment:
                                    - KAFKA_BROKER_ID=1
                                    - KAFKA_LISTENERS=PLAINTEXT://:9092
                                    - KAFKA_ADVERTISED_LISTENERS=PLAINTEXT://127.0.0.1:9092
                                    - KAFKA_ZOOKEEPER_CONNECT=zookeeper:2181
                                    - ALLOW_PLAINTEXT_LISTENER=yes
                                    depends_on:
                                    - zookeeper


In the above docker-compose file, we have 2 services, zookeeper, and Kafka. the Kafka is depends on the zookeeper and run both apps in the container on the given ports.

Step 3: Run the docker container

Now we need to run the docker container using the below command. the below command will start the container and pull the image for zookeeper and kafka. Before running the below command, don't forget to start the docker on your machine.

                                                docker-compose up

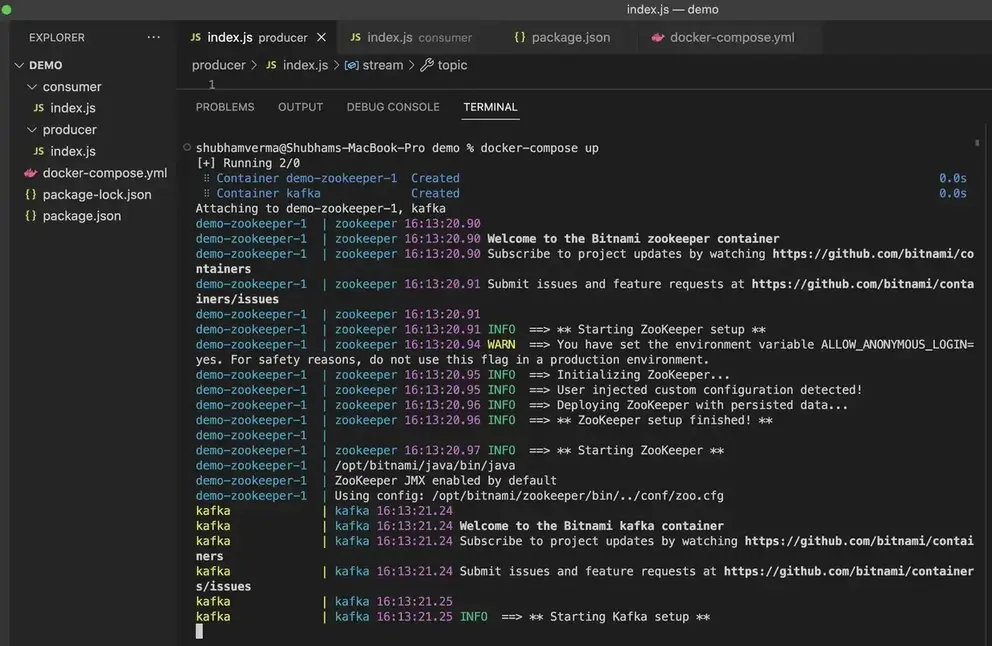

This is what your command result will look like.

Integrate Kafka Messaging Queue with NodeJS

Note: Keep this tab running, and we will have 3 terminals running at the same time, at last, 1 for the docker container, 1 for the producer and 1 for consumers.

Step 4: Create a topic in Kafka

Before implementing Kafka, we need to decide on the Kafka topic (explained at the top). Kafka Topic is a category or feed name to which records are published. In this topic, we will publish our messages, basically, this is the message queue.
We will create a topic name "test". To create a topic run the below command.

                                docker exec -it kafka /opt/bitnami/kafka/bin/kafka-topics.sh \
                                --create \
                                --bootstrap-server localhost:9092 \
                                --replication-factor 1 \
                                --partitions 1 \
                                --topic test

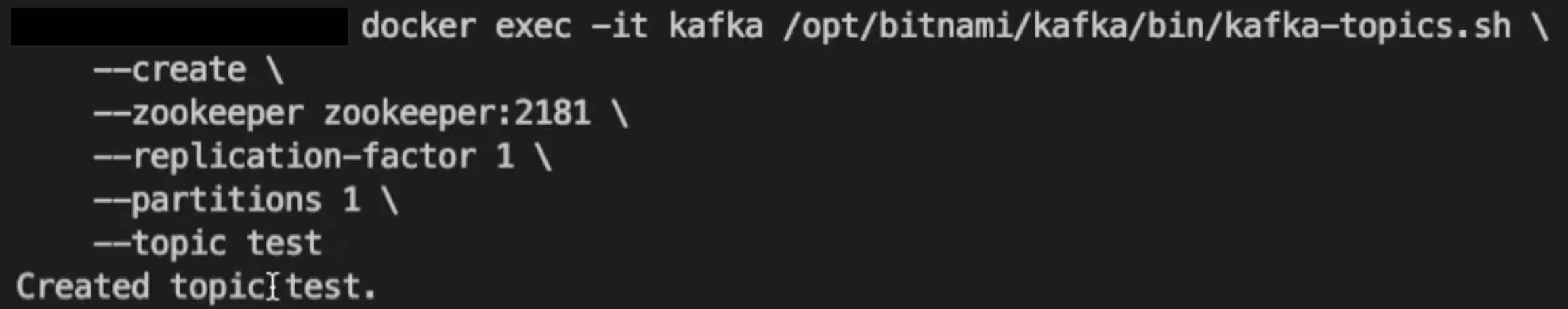

If your topic is successfully created, then you can see a message "Topic created test" as below.

Integrate Kafka Messaging Queue with NodeJS

Step 5: Create package.json file

Now it's time to integrate the Kafka with nodejs, for this we need to create a package.json with the below codes.


                                {
                                    "name": "node-kafka-demo-by-shubham",
                                    "type": "module",
                                    "version": "1.0.0",
                                    "description": "This is a demo app for Kafka with nodejs by Shubham Verma",
                                    "main": "index.js",
                                    "scripts": {
                                      "start:producer": "node producer/index.js",
                                      "start:consumer": "node consumer/index.js"
                                    },
                                    "author": "",
                                    "license": "ISC",
                                    "dependencies": {
                                      "avsc": "^5.6.2",
                                      "node-rdkafka": "^2.10.1"
                                    }
                                  }


In the above codes, we have 2 scripts, "start:producer" and "start:consumer". We will use these scripts later when we will finish our producer and consumer.
Also, we have used a npm package called "node-rdkafka". Using this npm package we will publish the message into the Kafka and will consume the message through the consumer.

Step 6: Install the dependencies

After, we need to install the dependencies that we have added in the package.json file. So let's run below command.

npm install

Step 7: Create a Producer

Now, it's time to create a producer. The Producer will publish the message into Kafka every 4 seconds.
Let's write the below codes into producer/index.js

producer/index.js

                                    import Kafka from 'node-rdkafka';

                                    const KafkaStream = Kafka.Producer.createWriteStream({
                                        'metadata.broker.list': 'localhost:9092'
                                    }, {}, {
                                        topic: 'test'
                                    });

                                    KafkaStream.on('error', (err) => {
                                        console.error('Error in kafka stream');
                                        console.error(err);
                                    });

                                    function publishMessage() {
                                        const randomNumber = Math.floor(Math.random() * 100000 * 5);
                                        const messageBody = { number: randomNumber };
                                        const success = KafkaStream.write(Buffer.from(JSON.stringify(messageBody)));
                                        if (success) {
                                            console.log(`Message Queued - ${JSON.stringify(messageBody)}`);
                                        } else {
                                            console.log('Message not pushed');
                                        }
                                    };

                                    setInterval(() => {
                                        publishMessage();
                                    }, 4000);


Let's understand the above codes.
In the above codes, we have imported the 'node-rdkafka' and we are creating a stream using 'Kafka.Producer.createWriteStream'. We have provided the required options and the topic name 'test' that we will use to publish the message in that message queue.
We have handled any kind of exception or error using KafkaStream.on('error').
Now we have publishMessage() method which is generating a random number and this random number will be pushing into the queue. The publishMessage() is getting called every 4 seconds, so every 4 seconds, the producer will publish a random number into our topic.

Step 8: Run the producer

Now it's time to run the producer using the below command.

npm run start:producer

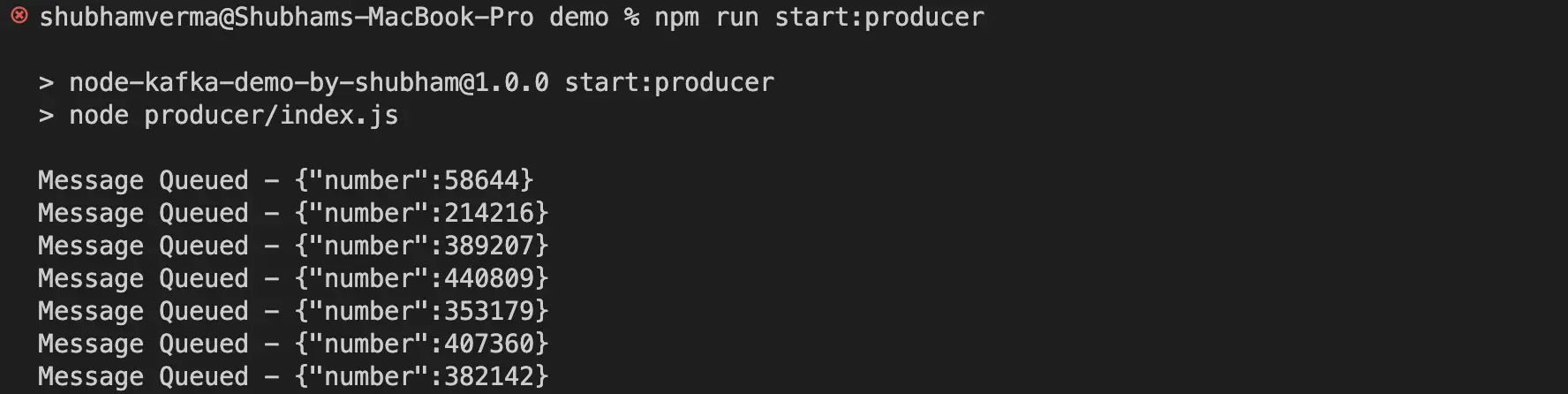

After running the above command, you can see your producer will start and it starts publishing the messages into the queue. see the below result.

Integrate Kafka Messaging Queue with NodeJS

Note: Keep this terminal running along with the docker terminal.

Step 9: Create Consumer

Now it's time to create the consumer to consume the already queued messages by the producer. When the consumer will be started, this will read all the previous messages stored in the topic, and also will be consuming the new messages when the producer publishes the topic.

Let's write the below codes to consume the message in the file "consumer/index.js"

consumer/index.js

                                import Kafka from 'node-rdkafka';

                                var KafkaConsumer = new Kafka.KafkaConsumer({
                                    'group.id': 'kafka',
                                    'metadata.broker.list': 'localhost:9092',
                                }, {});

                                KafkaConsumer.connect();

                                KafkaConsumer.on('ready', () => {
                                    console.log('Kafka Consumer ready..')
                                    KafkaConsumer.subscribe(['test']);
                                    KafkaConsumer.consume();
                                })
                                .on('data', function (data) {
                                    console.log(`Received Message: ${data.value}`);
                                });



In the above codes, we are consuming the messages once the consumer is ready to consume the data.

Step 10: Run the Consumer

Now it's time to run the consumer, to do so, we need to run the below command.

                                npm run start:consumer

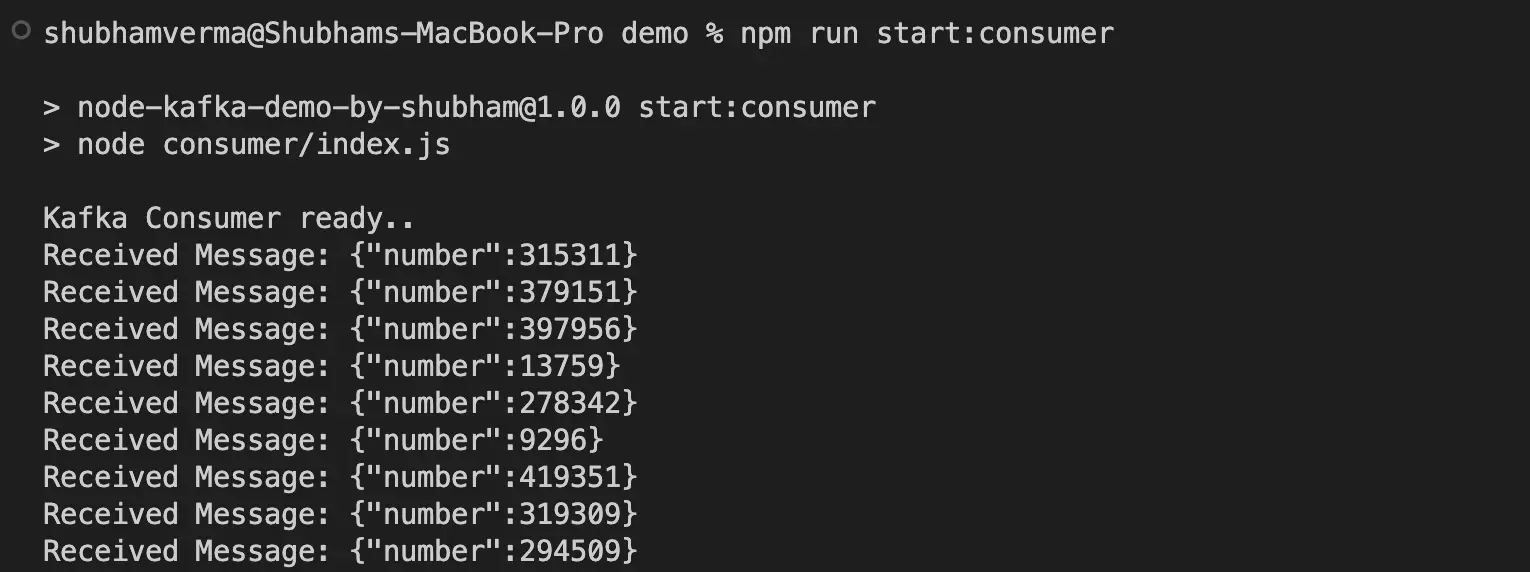

After running the above command you will see our consumer is consuming the data which is already stored by our producer and then will start consuming once the message is published into the topic, see the below output.

Integrate Kafka Messaging Queue with NodeJS

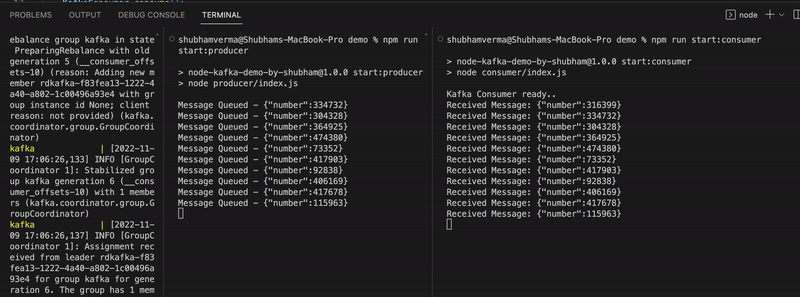

See the full result here:

Integrate Kafka Messaging Queue with NodeJS

---

Conclusion:

In this article, we learned about Kafka like, What is Apache Kafka?, Basic Terminology of Kafka, Kafka Topic, Partition, Consumer, Brokers, Zookeeper, Kafka Cluster, Kafka Features and we have integrated Kafka with NodeJS.
