AWS EC2 | Create AWS EC2 Instance step by step

In this article, we will learn how we can create “AWS EC2 instance” and advantages of AWS EC2 instance. But before creating an EC2 instance we need to know what is AWS EC2 ?, For this, I have already published an article, you need to know “What is AWS EC2 ?”. Now you know about the AWS EC2, Let’s learn “How to create AWS EC2 Instance”.

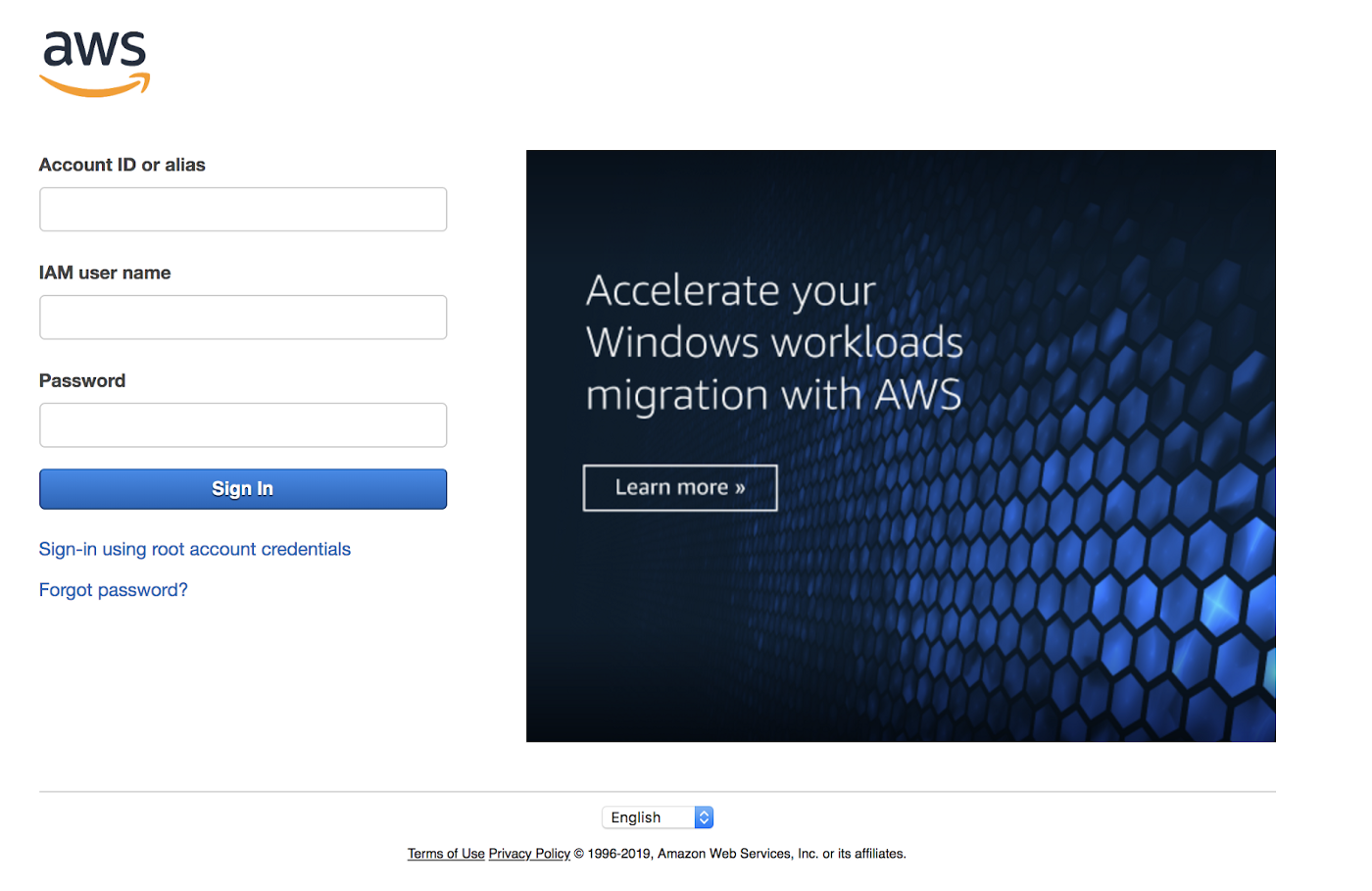

Step 1: Login into Amazon Console page using account Id, IAM User name and Password.

Create AWS EC2 Instance step by step

Source: Snapshot of the aws console page: Create AWS EC2 Instance step by step

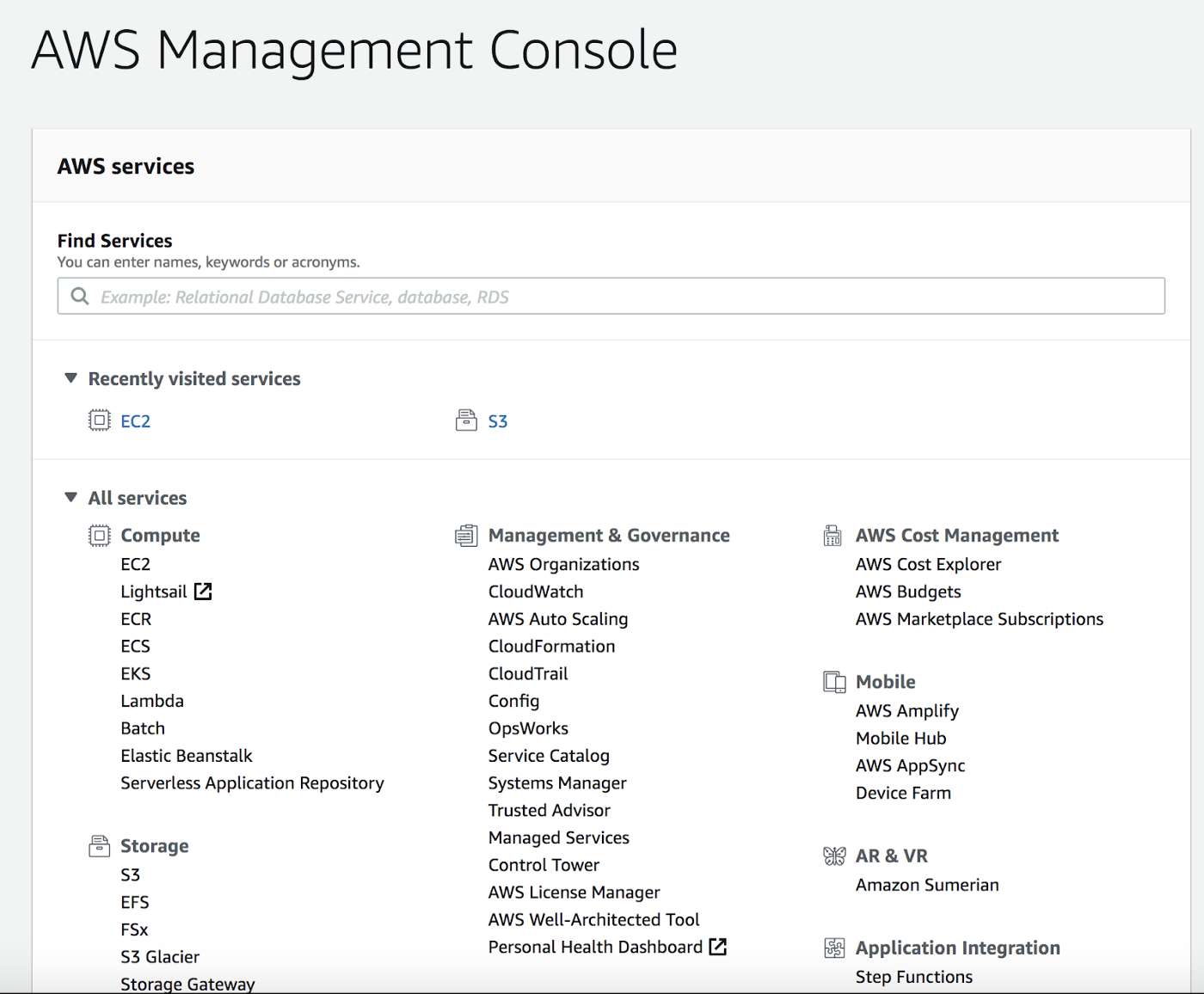

After successful sing in, Now you can see the below screen ( Make sure have permission for S3 and EC2 at least )

Create AWS EC2 Instance step by step

Source: Snapshot of the aws console page: Create AWS EC2 Instance step by step

Step 2: Now click on “EC2”:

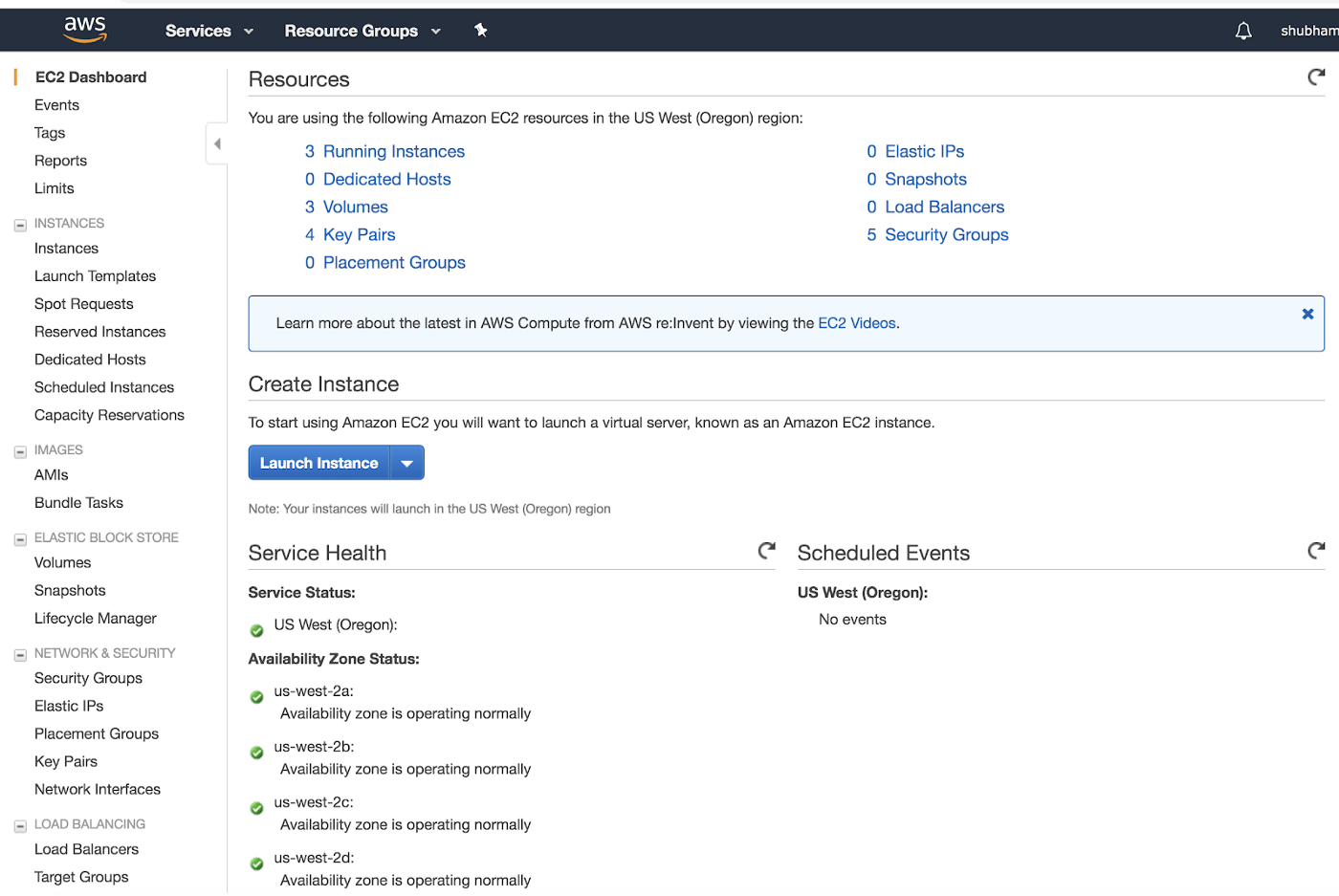

You can see the following screen and click on Launch Screen:

Create AWS EC2 Instance step by step

Source: Snapshot of the aws console page: Create AWS EC2 Instance step by step

Step 3: Choose Amazon Machine Image ( AMI ) Select the OS for instance:

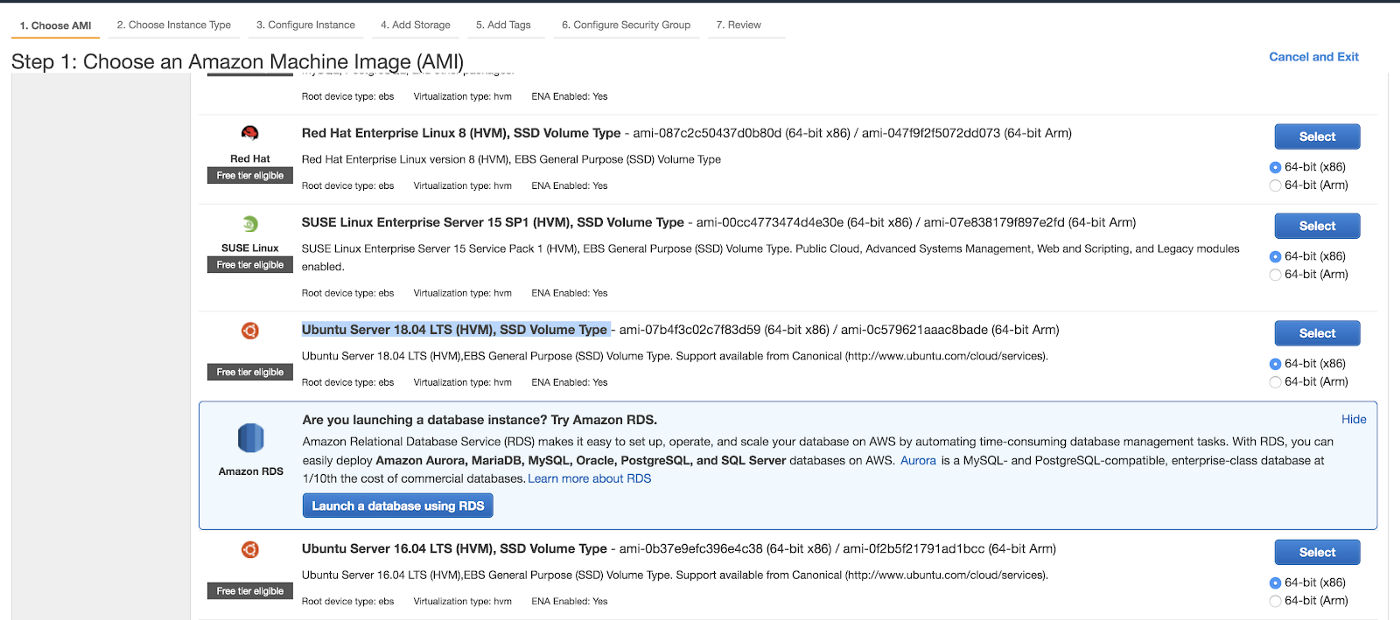

After clicking on Launch Screen, You can see the following screen and select “Ubuntu Server 18.04 LTS (HVM), SSD Volume Type”:

Create AWS EC2 Instance step by step

Source: Snapshot of the aws console page: Create AWS EC2 Instance step by step

You can choose any of the OS, but for learning, let’s click on select in front of Ubuntu Server.

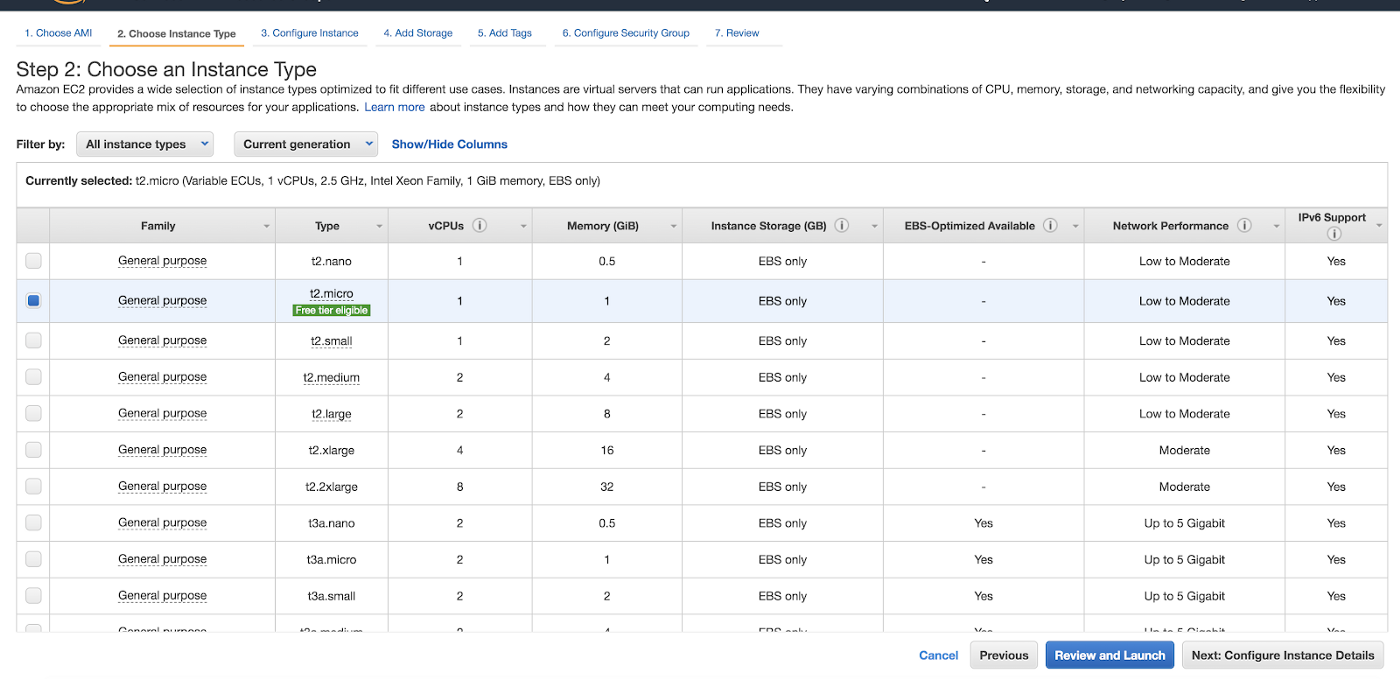

Step 4: Choose an Instance Type, you can see multiple options as :

Create AWS EC2 Instance step by step

Source: Snapshot of the aws console page: Create AWS EC2 Instance step by step

If you want to create an instance for free then you need to select “t2.micro” but it has so many limitations like limited memory, limited process.


So here I am selecting “t2.medium” so that I can explain to you in a better way ( You can select “t2.micro”, nothing will be changed ).

After selecting the Instance type click on “Next: Configure Instance Details”.

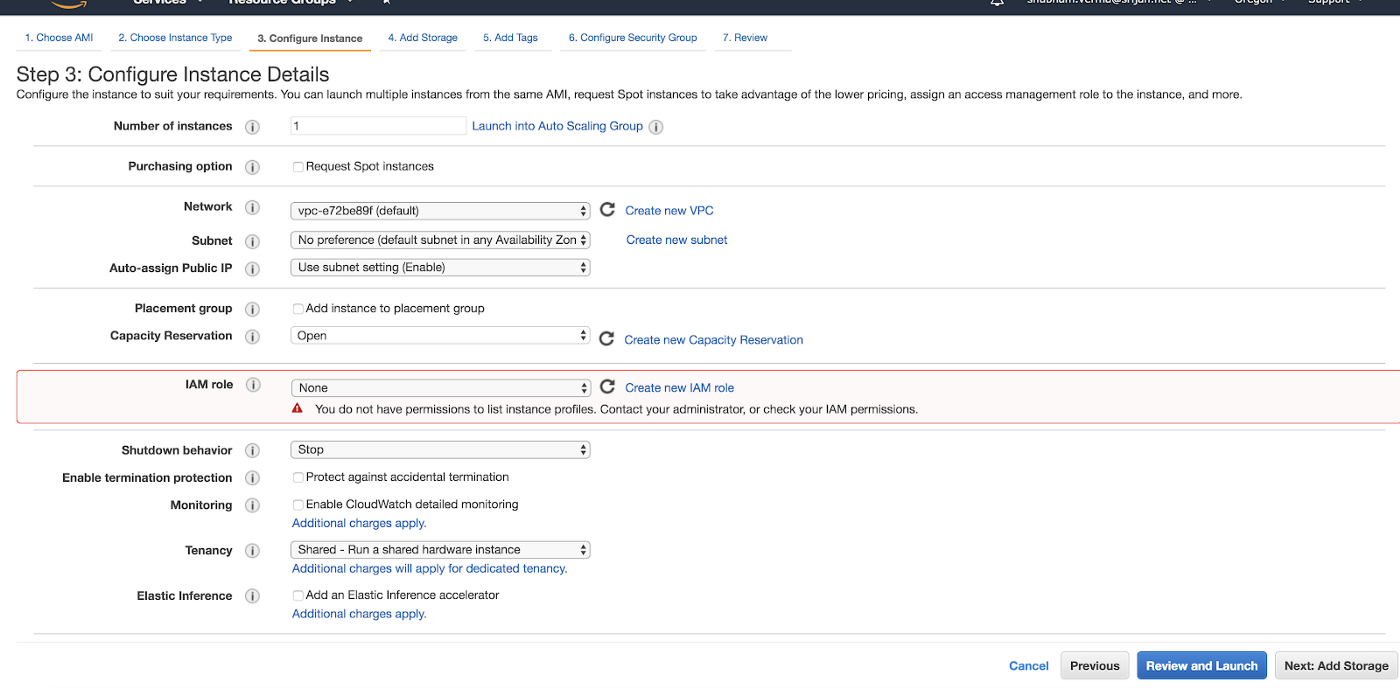

Step 5: After clicking on “Next: Configure Instance Details” you can see the following details:

Create AWS EC2 Instance step by step

Source: Snapshot of the aws console page: Create AWS EC2 Instance step by step

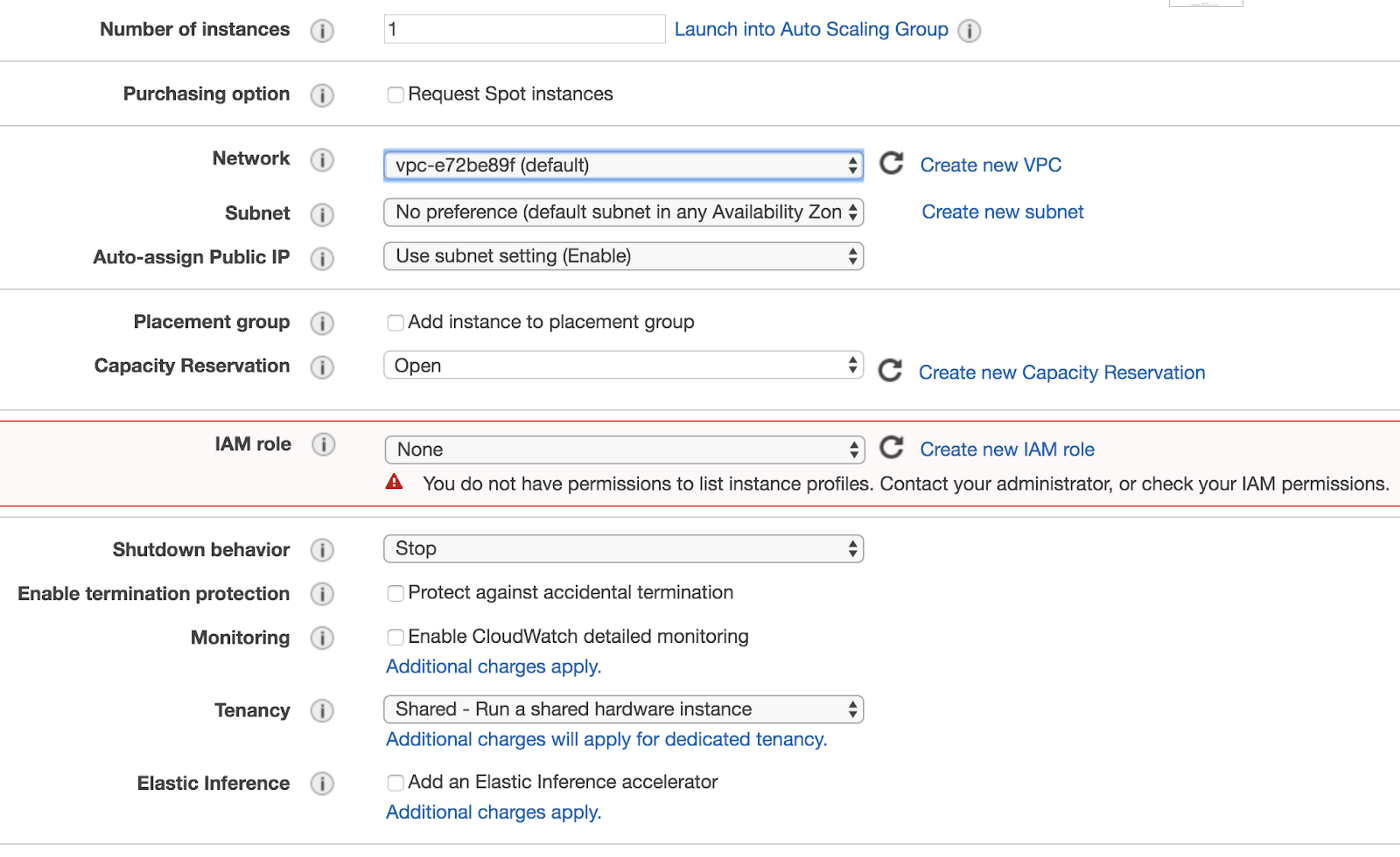

You need to select the following things as in the below image:

Create AWS EC2 Instance step by step

Source: Snapshot of the aws console page: Create AWS EC2 Instance step by step

Step 6: Now you need to click on “Next: Add Storage”:

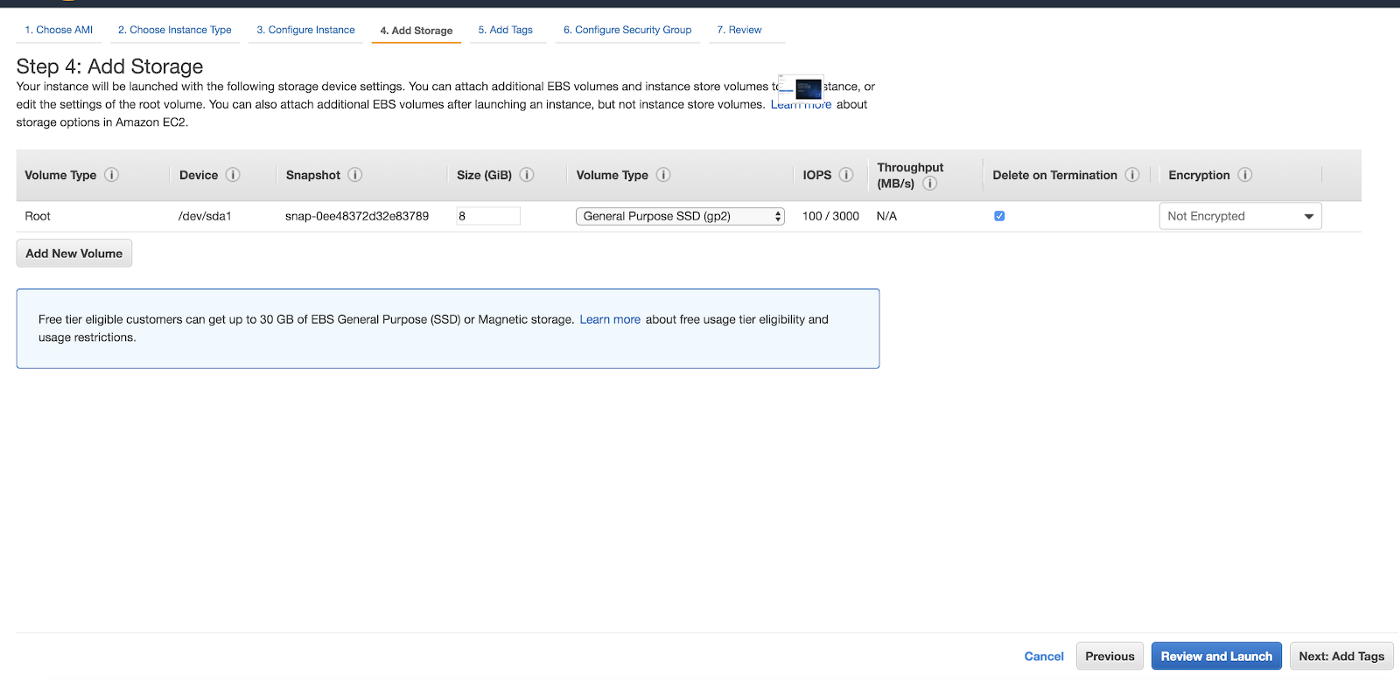

After clicking on this, you can see the below screen:

Create AWS EC2 Instance step by step

Source: Snapshot of the aws console page: Create AWS EC2 Instance step by step

And your selected options would be like this:

Create AWS EC2 Instance step by step

Source: Snapshot of the aws console page: Create AWS EC2 Instance step by step

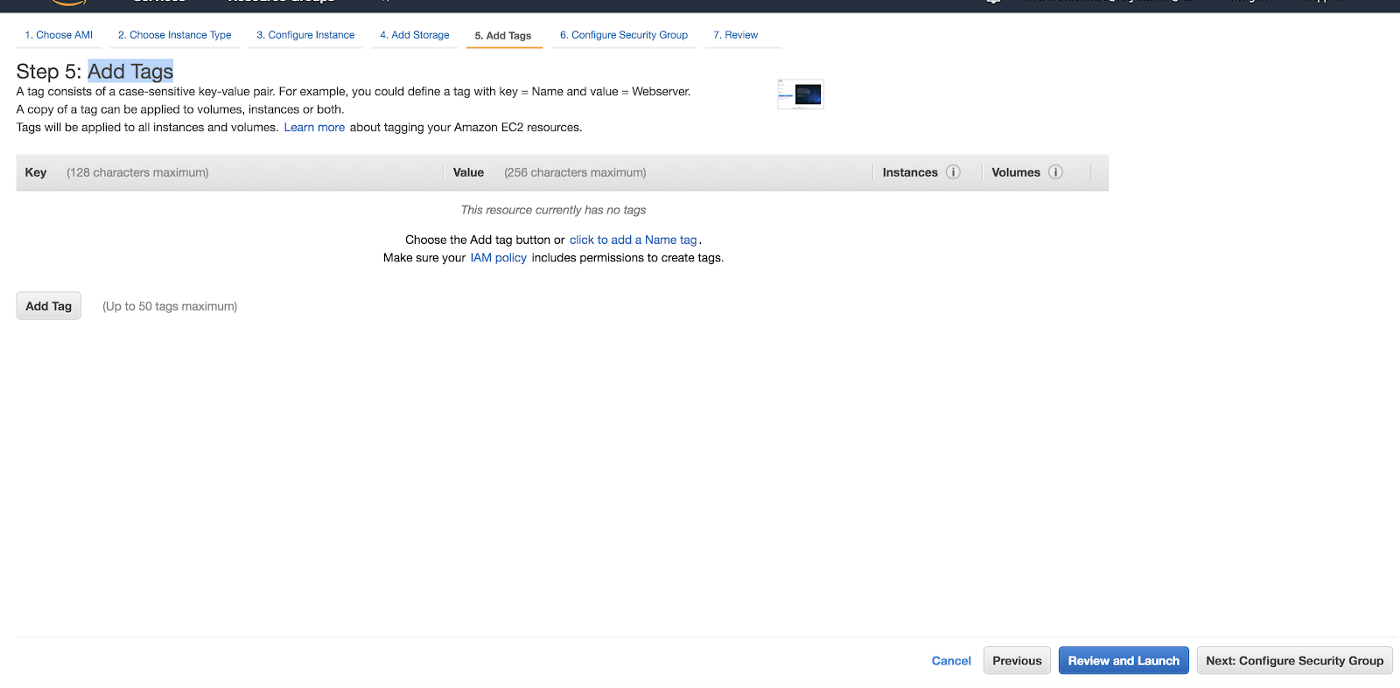

Step 7: Now click on “Next: Add Tags”, After clicking on “Next: Add Tags” you can see the following screen:

Create AWS EC2 Instance step by step

Source: Snapshot of the aws console page: Create AWS EC2 Instance step by step

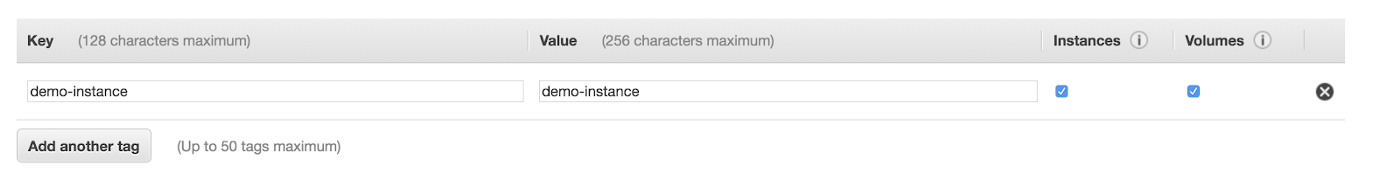

Now you need to click on “Add Tag” to add a name to describe this instance, I am entering “demo-instance” as key and also for value as:

Create AWS EC2 Instance step by step

Source: Snapshot of the aws console page: Create AWS EC2 Instance step by step

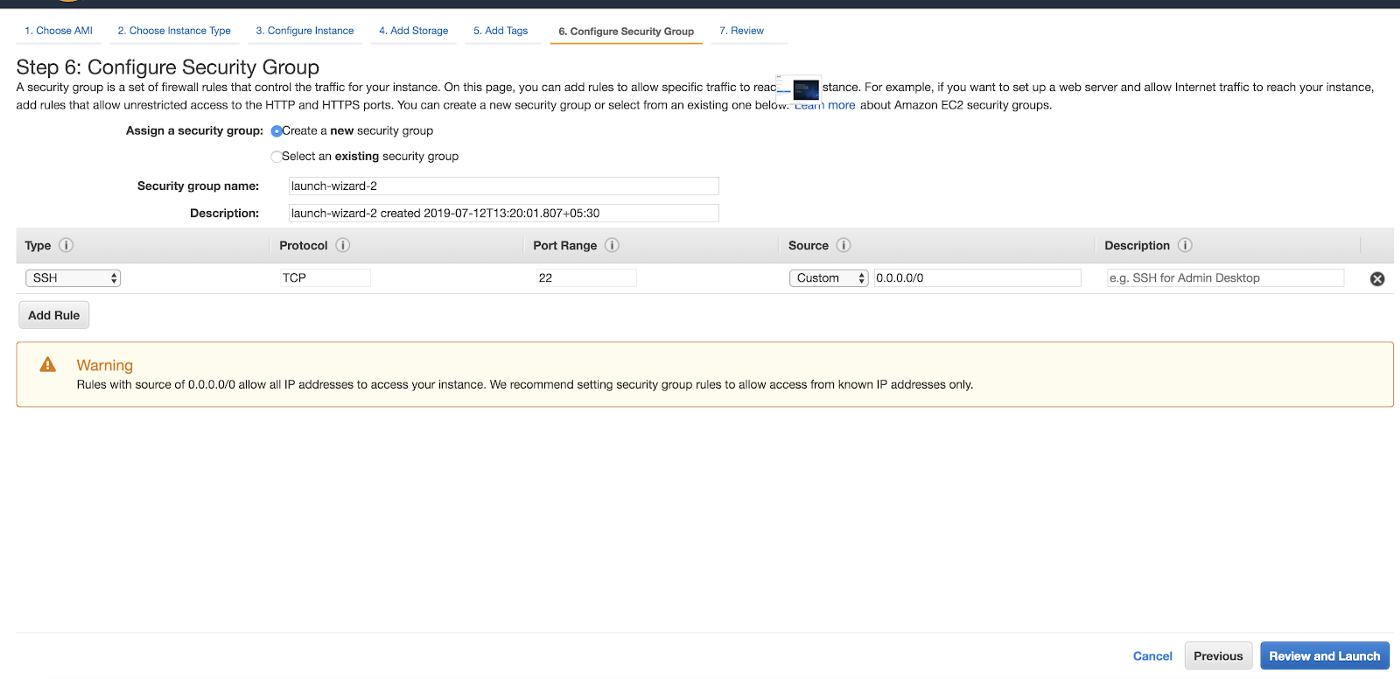

Step 8: Now Click on “Next: Configure Security Group” after clicking on “Next: Configure Security Group” you can see the following screen:

Create AWS EC2 Instance step by step

Source: Snapshot of the aws console page: Create AWS EC2 Instance step by step

Step 9: Now you need to select as:

Assign a security group: Create a new security group
Security group name:demo-instance
Description: demo-instance created 2019–07–12T13:20:01.807+05:30( You can enter any name and description )
Now enter “SSH for demo-instance” in the description box for SSH.

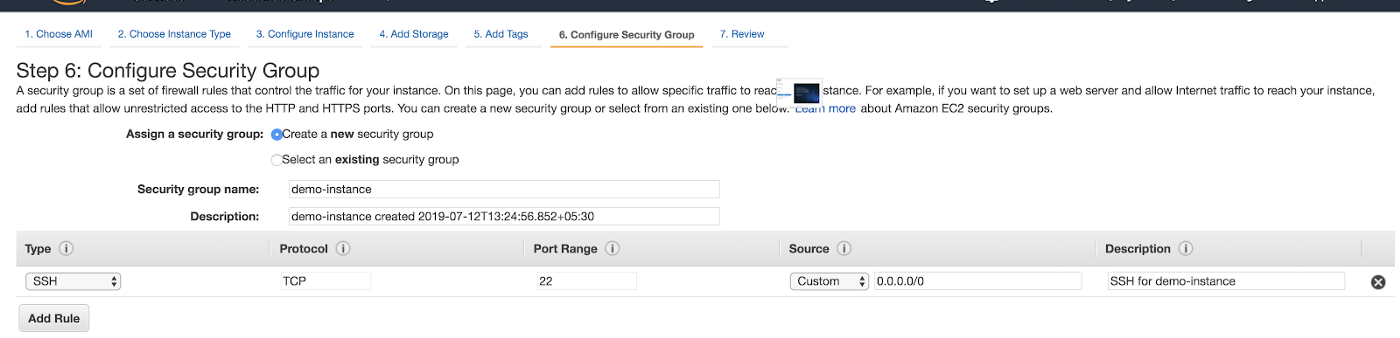

Now it looks like:

Create AWS EC2 Instance step by step

Source: Snapshot of the aws console page: Create AWS EC2 Instance step by step

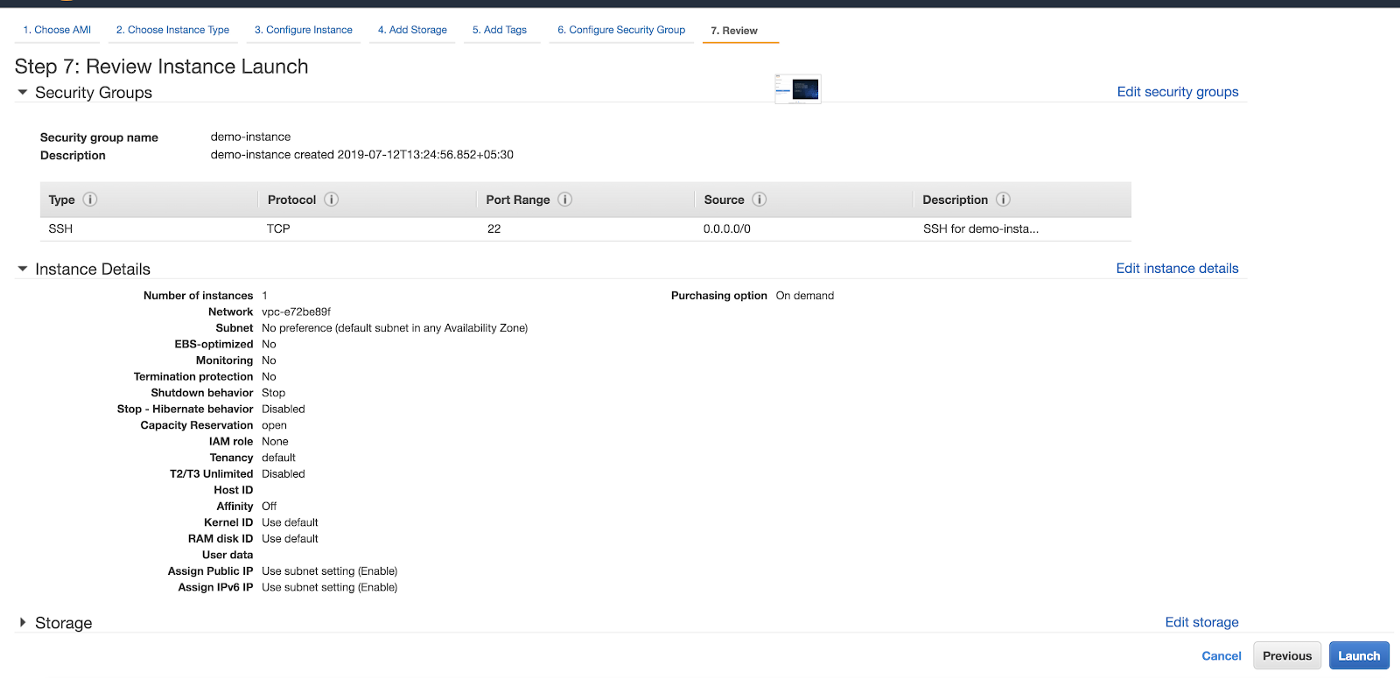

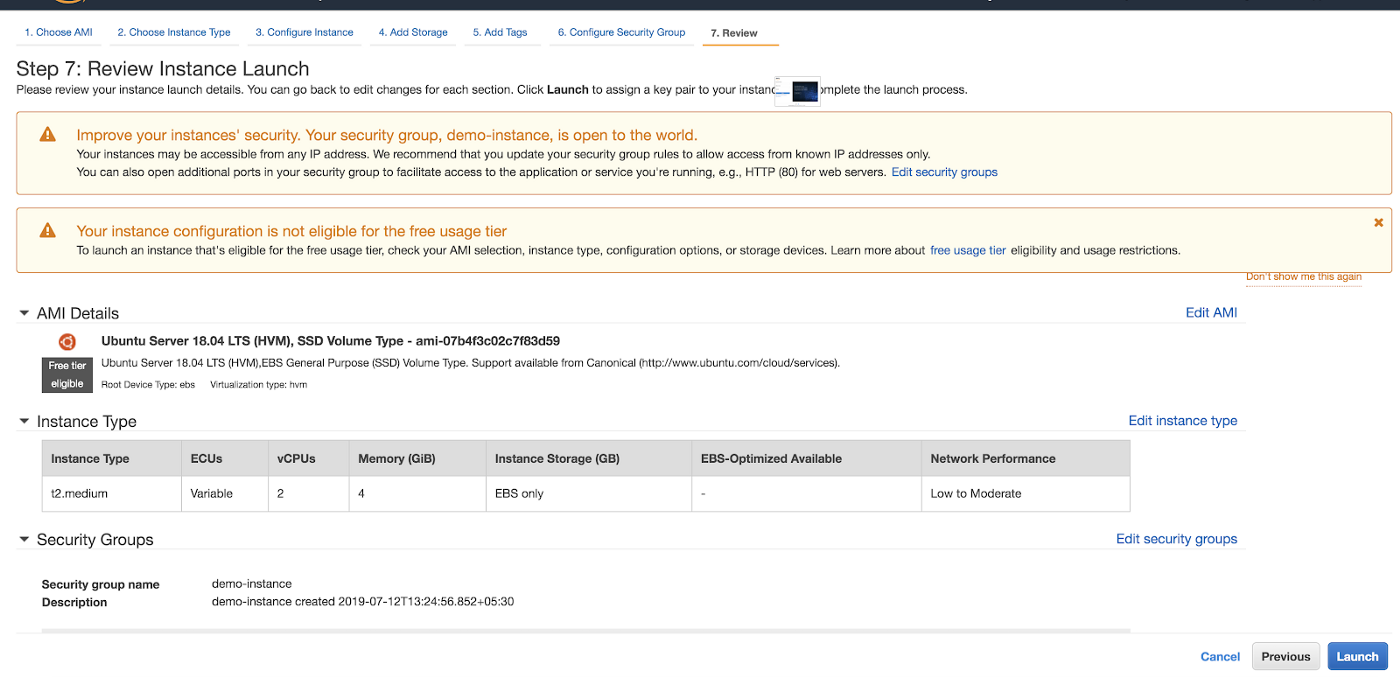

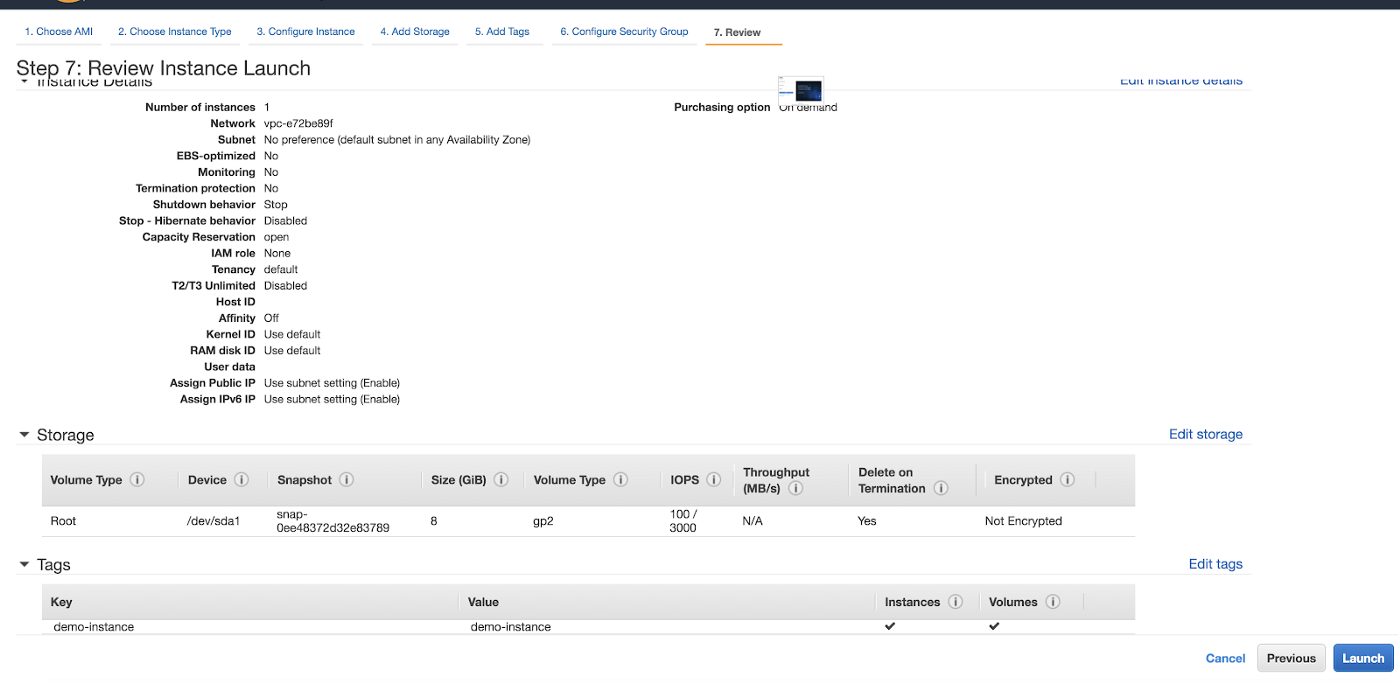

Step 10: Now click on Review and Launch, After clicking on “Review and Launch” you can see the following screen and see the all info as:

Create AWS EC2 Instance step by step

Source: Snapshot of the aws console page: Create AWS EC2 Instance step by step

Create AWS EC2 Instance step by step

Source: Snapshot of the aws console page: Create AWS EC2 Instance step by step

Create AWS EC2 Instance step by step

Source: Snapshot of the aws console page: Create AWS EC2 Instance step by step

Step 11: Now click on “Launch”

After clicking “Launch” you can see the following screen:

Create AWS EC2 Instance step by step

Source: Snapshot of the aws console page: Create AWS EC2 Instance step by step

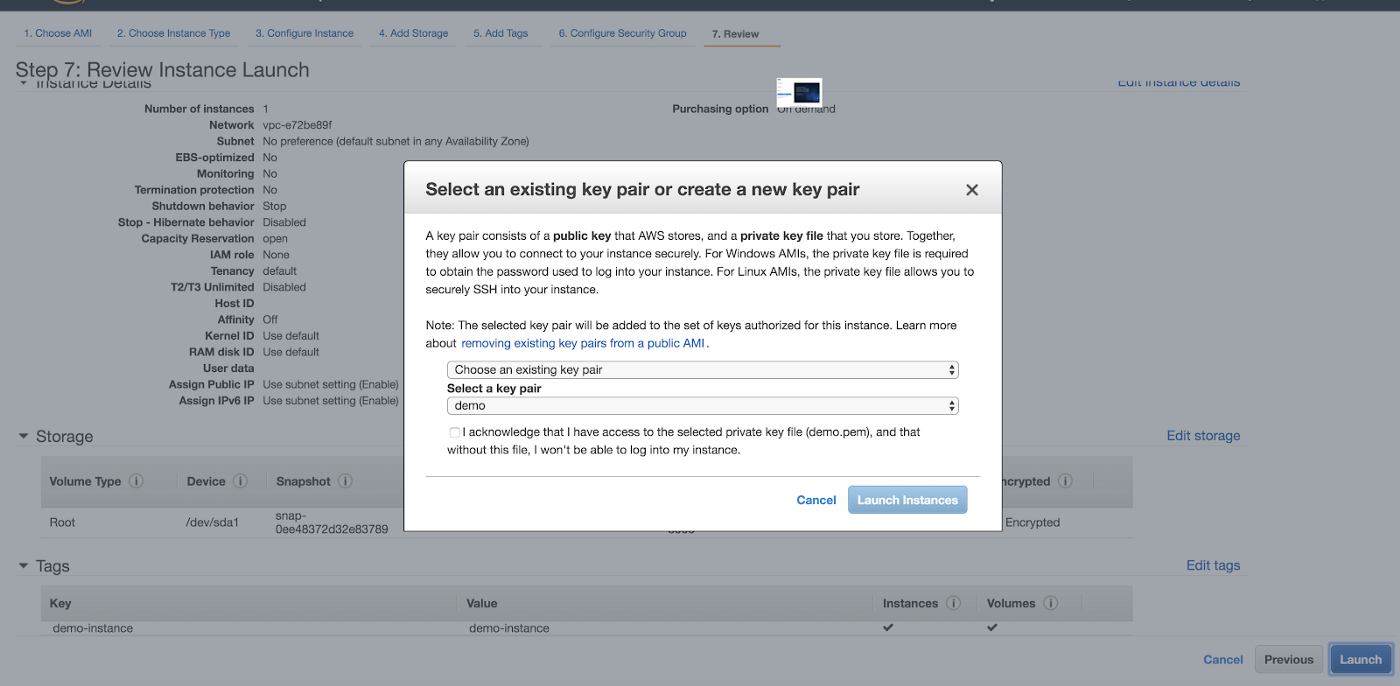

Now you need to create a new security key pair to connect to the terminal for this instance.

Create AWS EC2 Instance step by step

Source: Snapshot of the aws console page: Create AWS EC2 Instance step by step


Create AWS EC2 Instance step by step

Source: Snapshot of the aws console page: Create AWS EC2 Instance step by step

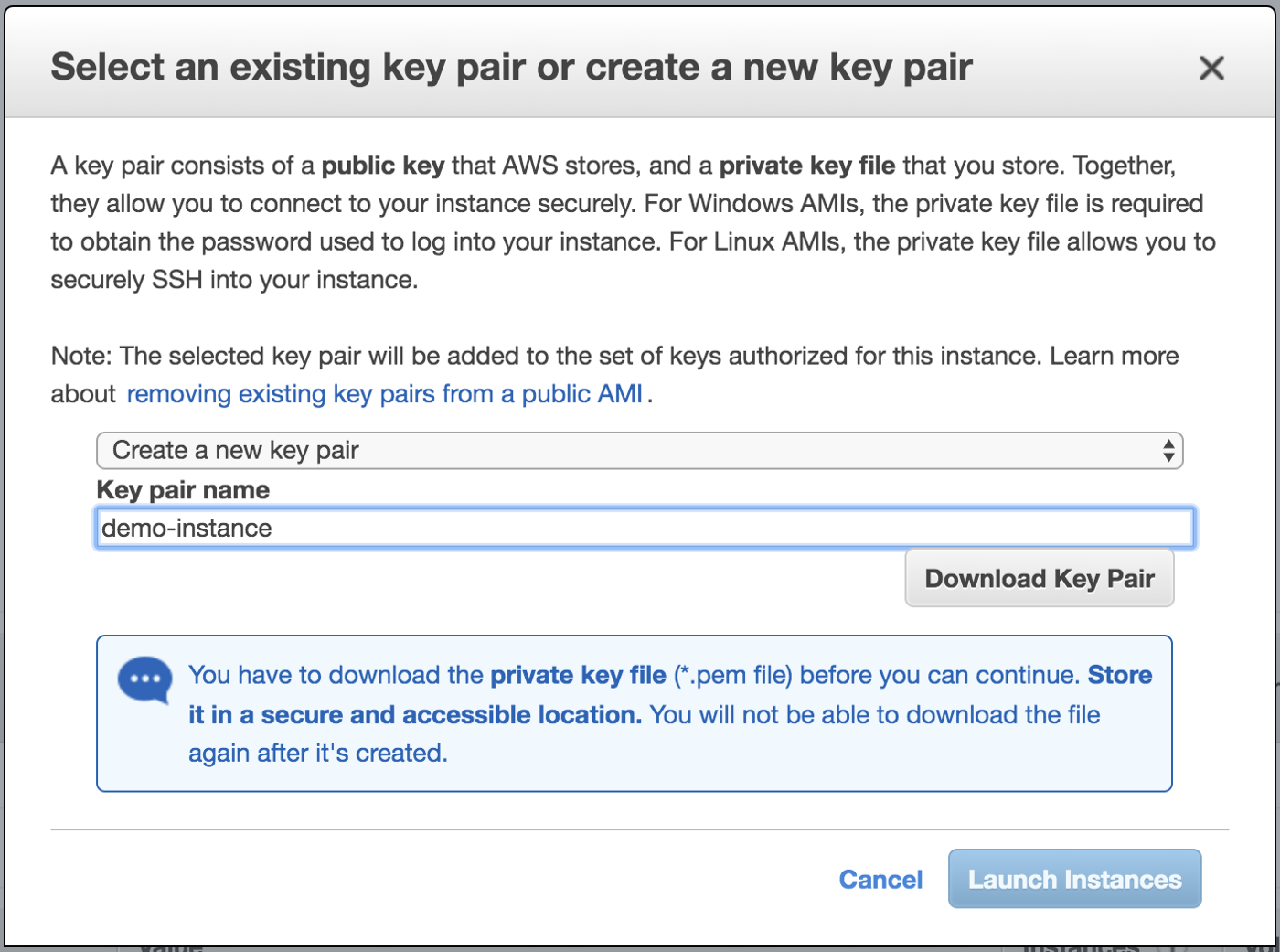

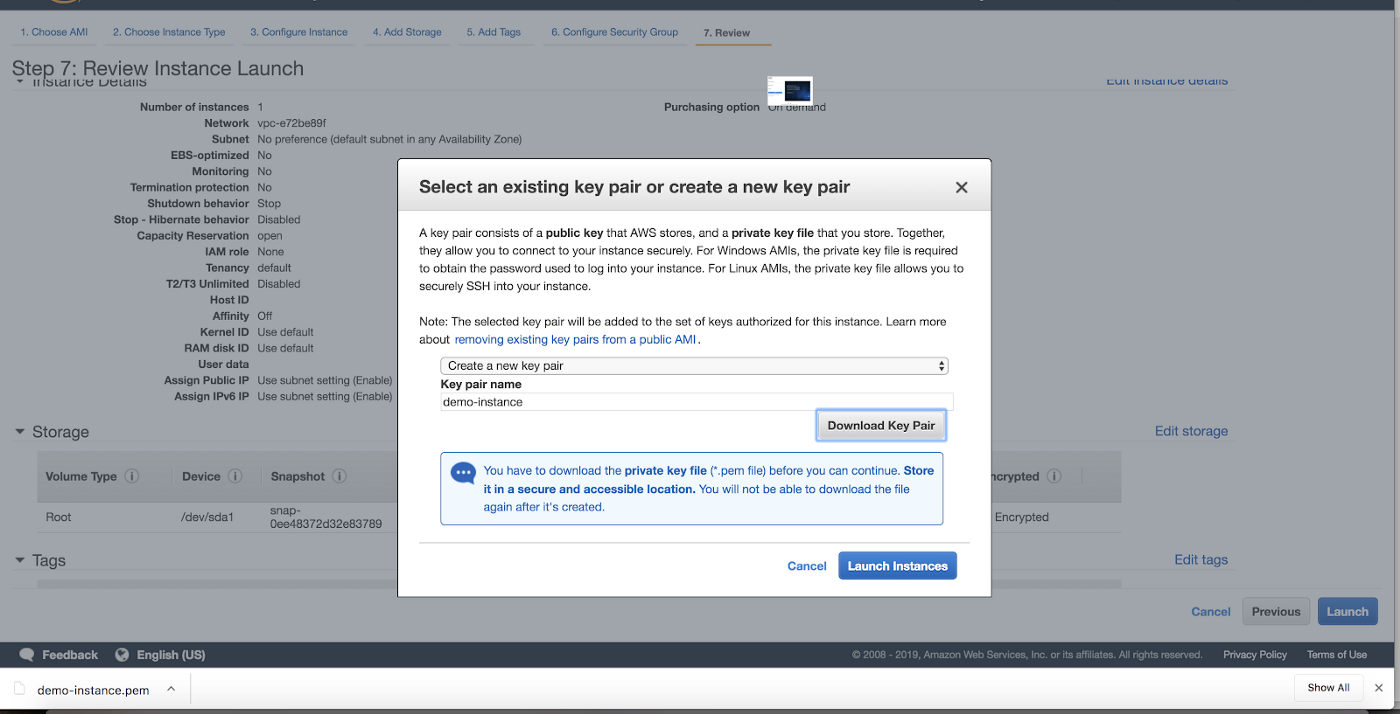

Select “Create a new key pair” and enter a key pair name “demo-instance” and download the “demo-instance.pem” file by clicking on “Download key pair” button. Make sure you will download the “demo-instance.pem” file otherwise you will get the problem to connect.
Now copy this “demo-instance.pem” file and save it in the desired location ( AWS demo/demo-instance.pem” )

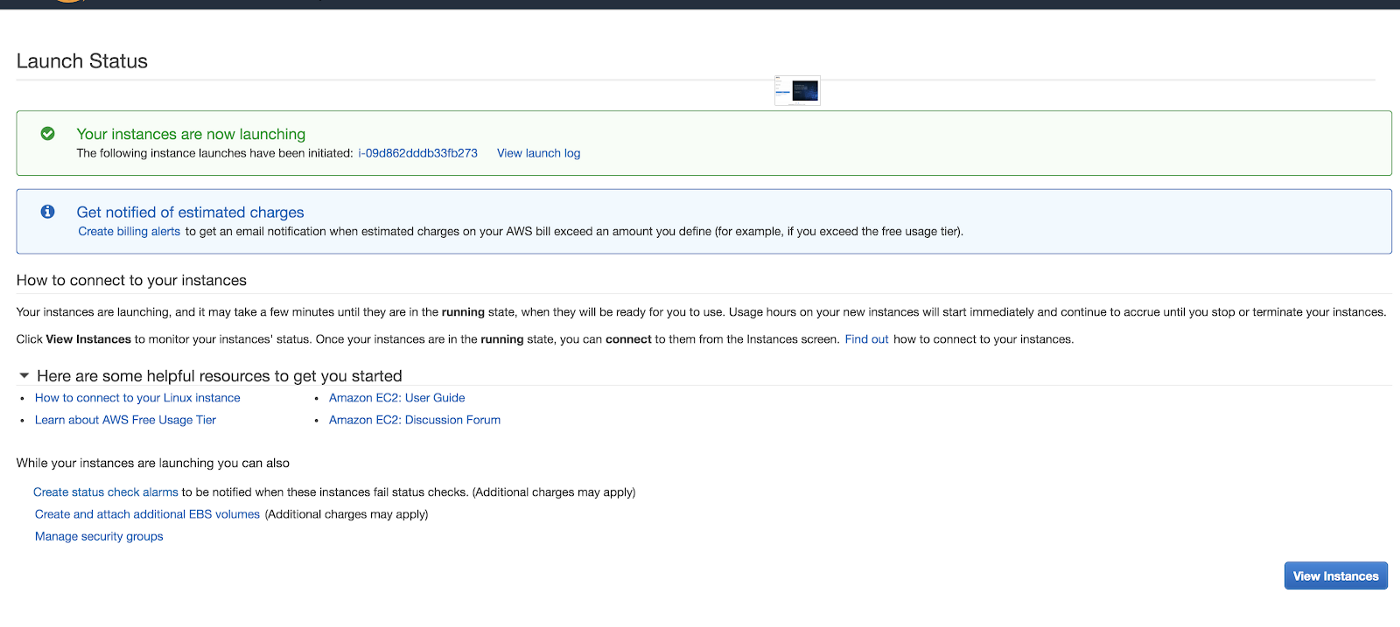

Step 12: Now click on “Launch Instance”. After clicking on “Launch Instance” you can see below screen:


Create AWS EC2 Instance step by step

Source: Snapshot of the aws console page: Create AWS EC2 Instance step by step


Now click on “View Instances” to see all instance lists and you can see the IP address ( IPv4 Public IP ) of this instance, This IP will be used when you will connect to this instance using the terminal or you will map with the domain name.

Summarizing:


                    * We have created an AWS instance.
                    * We have a Public IP like 34.219.193.28
                    * We have a demo-instance.pem file
                    All the above info/data will be used to take the remote access of this instance.


Congrats… Your AWS instance is created now.
